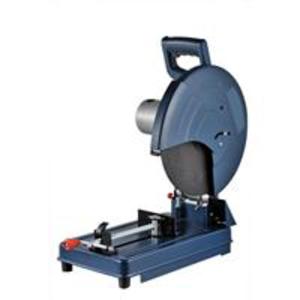

14" Cut-Off Saw

Specifications:

Power: 1HP /220V/Single Phase

Speed: 3900RPM

Cutting wheel size: 14" (355.6mm)

Gross weight: 17.5Kgs

All Specifications and design characteristics shown are subject to change without any prior notice.

16" Cut-Off Saw

Specifications:

Power: 5HP/220Volt/Single Phase

Speed: 2850RPM

Cutting Wheel size: 16" (406.4mm)

Features:

Heavy Duty Cast Iron can induct vibration for sturdy operation.

Quick releaser vise for holding workpiece, which allows cuts up to a 45 deg angle.

Special designed handle for easy movement.

All specifications and design characteristics shown are subject to change without prior notice.

RF-712 7" Metal Bandsaw

Specifications:

Power: 3/4HP / 220Volt/Single Phase

Cutting capacity:

 Round: 90 Degrees: 177.8mm

              45 Degrees: 127mm

Rectangular: 90 Degrees: 177.8mm x 304.8mm (7"x12")

                      45 Degrees: 120mm x 115mm (4 3/4" X 4 1/2")

Blade speeds: 70, 105, 145, 190FPM

Motor speed: 1420RPM

Blade size: 19.05 x 0.8x2362mm (carbon blade)

Horizontal/vertical

All specifications and design characteristics shown are subject to change without prior notice.

RF-115 4 1/2

Specifications:

Power: 1/3HP / 220Volt/Single Phase

*Cutting capacity: Round(114.3mm (4 1/2"),  Rectangular(100x150mm (4"x6")

Blade speed: 65, 95, 165FPM

Motor speed: 1420RPM

Blade size: 12.7x0.64x1638mm

Blade wheels: High strength flanged cast iron (7 3/8" 187mm)

 * Use Horizontal or vertical.

All Specifications and Design characteristics shown are subject to change without prior notice.
